Mini Plus Modular Space Saver

Tradestairs online  | Staircases | Modular Staircases |  Mini Plus Modular Space Saver

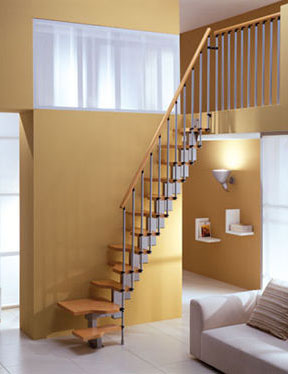

The Mini Plus Spacesaver

The Mini Plus Spacesaver

The Mini Plus space saver staircase is a modular staircase with a veriety of layout options the basic kit comes as a straight staircase giving you 11 treads which gives you 12 risers, additional tread packs and quarter turn landings are also available.

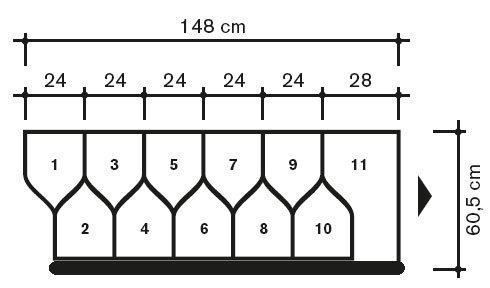

Mini Plus Spacesaver Staircase Kit

Mini Plus Spacesaver Staircase Kit

Ref: 93/01GR12


Price: £570.00 (Excluding VAT at 17.5%)

Quantity:

The Module Mini (Mini plus) Space saver staircase kit is an attractive lightweight kit that can be adjusted to the appropriate rise height when installed.

This standard kit comes with 11 steps giving you 12 risers and a handrail kit for one side.

The staircase width is 605mm and the step width is 550mm .

The rise of each step can be adjusted between 200 and 240mm (The maximum for UK Building regs is 220mm)

The going on each step is 250mm, The opening size for Mini-Plus must be the same size or larger than the floorplanof the staircase, We recommend leaving your well opening larger than the staircase and then trimming it to the final size once the staircase has been fitted and you feel you can walk up and down the staircase comfortably.


This staircase comes direct from Italy and delivery is typicaly 3 weeks. (Collection is not possible)

This staircase does not conform to UK Building Regulations.

Left or Right Hand

Left or Right Hand

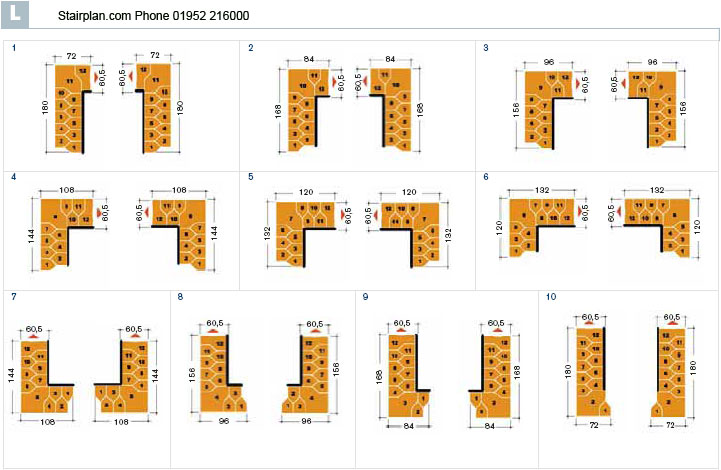

"L" Layout Options

On this image you can see the L- Shaped layout options giving you 13 risers remember you can add additional tread packs.

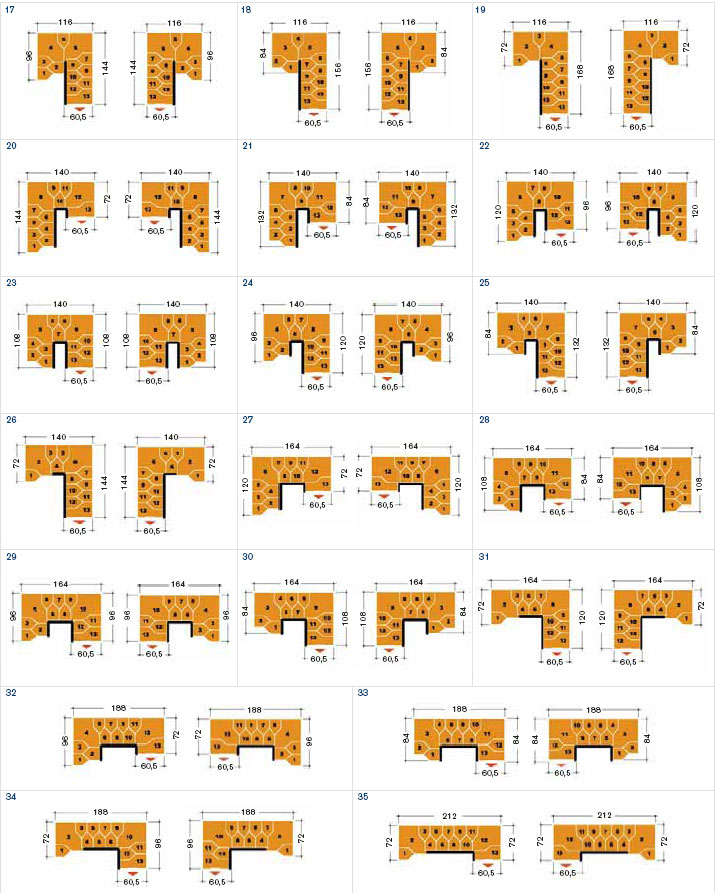

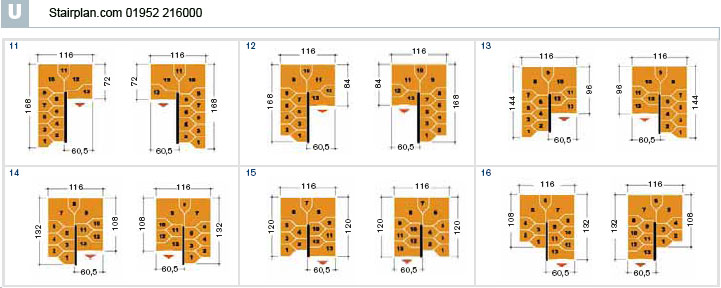

"U" Layout Options

By adding 2 of the landing platform kits you can achive a layout with a 180º turn.

(These are shown with 13 steps (14 risers) as this is the total you will have if you purchace the additional 2 landing kits but you may not require all of these.)

"U" Shaped Layout Options

Mini Plus Additional Tread Pack

Mini Plus Additional Tread Pack

Ref: 99/05/GR12


Price: £65.00 (Excluding VAT at 17.5%)

Quantity:

Mini Plus Additional Tread Pack

Complete with Balusters and handrail for one side.

(Collection is not possible)

Mini Plus Quarter Landing Platform Kit

Mini Plus Quarter Landing Platform Kit

Ref: 99/06/GR12


Price: £180.00 (Excluding VAT at 17.5%)

Quantity:

Mini Plus Quarter Landing Platform Kit

Complete with Nuts and Bolts.

(For L-Shaped and U-Shaped configurations)

(Collection is not possible)


Related products:

1. Mini Plus Offside Landing Handrail Pack (Ref: 99/07/GR12)

Mini Plus Offside Handrail Pack

Mini Plus Offside Handrail Pack

Ref: 99/09/GR12


Price: £100.00 (Excluding VAT at 17.5%)

Quantity:

Mini Plus Offside Handrail Pack

Complete with Balusters and handrail for 3 Mini Plus Steps.

(Collection is not possible)

Mini Plus Offside Landing Handrail Pack

Mini Plus Offside Landing Handrail Pack

Ref: 99/07/GR12


Price: £95.00 (Excluding VAT at 17.5%)

Quantity:

Mini Plus Offside Landing Handrail Pack

Complete with Balusters and handrail for one side of the Mini Plus Platform.

(Collection is not possible)

1M Landing Handrail Pack

1M Landing Handrail Pack

Ref: 99/08/GR12


Price: £100.00 (Excluding VAT at 17.5%)

Quantity:

1M Landing Handrail Pack

Complete with 8 Balusters and 1M of handrail .

(Collection is not possible)

Mini Plus Handrail Pack

Mini Plus Handrail Pack

Ref: 99/04/GR12


Price: £280.00 (Excluding VAT at 17.5%)

Quantity:

Mini Plus Offside Handrail Pack

Complete Rake handrail pack with Balusters and handrail for 11 Mini Plus Steps.

(Collection is not possible)

Steel Connectors Kit for Handrail

Steel Connectors Kit for Handrail

Ref: 99/14/GR00


Price: £70.99 (Excluding VAT at 17.5%)

Quantity:

Steel Connectors Kit for Handrail.

(Collection is not possible)

Baluster to Wall Connector

Baluster to Wall Connector

Ref: 99/11/GR00


Price: £20.00 (Excluding VAT at 17.5%)

Quantity:

Baluster to Wall Connector

Required to terminate the landing balustrade to a wall.

(Collection is not possible)

Baluster to Baluster Connector

Baluster to Baluster Connector

Ref: 99/10/GR00


Price: £20.00 (Excluding VAT at 17.5%)

Quantity:

Baluster to Baluster Connector

Required to connect the landing balustrade to the balustrade at the top of the stair, also recommended at corners on the landing balustrade.

(Collection is not possible)

Baluster to Floor stiffener kit

Baluster to Floor stiffener kit

Ref: 99/12/GR00


Price: £30.00 (Excluding VAT at 17.5%)

Quantity:

Baluster to Floor stiffener kit

Recommended to be used every 1M with the landing balustrade .

(Collection is not possible)

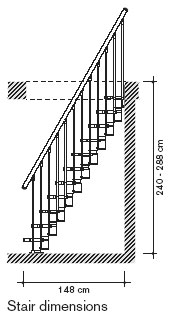

Side View

Side View

Tread Detail

Tread Detail

The Rise adjusts between 200 and 240mm the maximum you should use in the uk is 220mm

Height guide

Height guide

Remember these sizes are the maximum for the kit but you need to try and not exeed the 220mm maximum rise height for the UK.

Important Notice

The accessories on this page can only be ordered with the staircase kit, if these are ordered without the staircase kit then a delivery charge must be added.
