Left tabSW39N Winder Staircase Options without handrailsRight tab

SW39N Winder Staircase Options without handrails

Tradestairs online  | Staircases | Winder Staircases | Winder Staircases Online Ordering Menu | SW39N Single Winder Staircase |  SW39N Winder Staircase Options without handrails

Trade Range SW39N Winder Staircase R/H No Handrails

Trade Range SW39N Winder Staircase R/H No Handrails

Ref: TSW39N-RH


Price: 395.00 (Excluding VAT at 20%)

Quantity:


Floor to Floor height 2500 -2600mm

Select Rise - "B" length = 2936mm


Floor to Floor height 2600 - 2700mm

Select Rise - "B" Length = 3008mm


Floor to Floor Height 2700 - 2800mm

Select Rise - "B" Length = 3125mm


Upgrade Treads to Engineered Pine

Upgrade Risers to Pine Faced

Flat-Pack ( The staircase will come part assembled tick this box if you want the staircase to come as a Flat-Pack Kit)

If you would like a Confirmation Drawing before the staircase goes into production this will slightly delay the process. But only by the time it takes you to sign and return you confirmation. (Additional drawings after the first one are £25.00 + vat)

Confirmation drawing

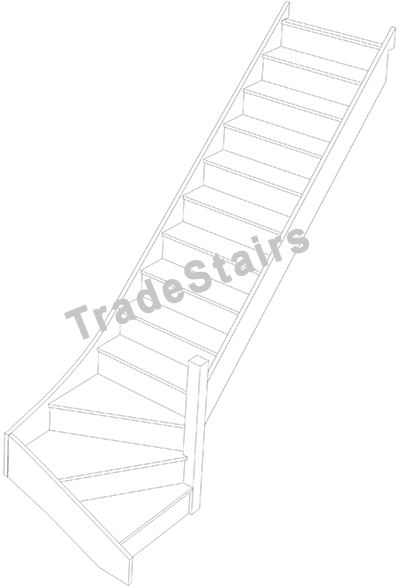

Trade range winder staircase this 13 riser flight winds to the right, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 9mm Plywood
Stub Newel Post - 90 x 90mm Pine

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less.

Select from the Rise heights given and note any changes to the length of the "B" dimension.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.

Trade Range SW39N Winder Staircase L/H No Handrails

Trade Range SW39N Winder Staircase L/H No Handrails

Ref: TSW39N-LH


Price: 395.00 (Excluding VAT at 20%)

Quantity:


Floor to Floor height 2500 -2600mm

Select Rise - "B" length = 2936mm


Floor to Floor height 2600 - 2700mm

Select Rise - "B" Length = 3008mm


Floor to Floor Height 2700 - 2800mm

Select Rise - "B" Length = 3125mm


Upgrade Treads to Engineered Pine

Upgrade Risers to Pine Faced

Flat-Pack ( The staircase will come part assembled tick this box if you want the staircase to come as a Flat-Pack Kit)

If you would like a Confirmation Drawing before the staircase goes into production this will slightly delay the process. But only by the time it takes you to sign and return you confirmation. (Additional drawings after the first one are £25.00 + vat)

Confirmation drawing

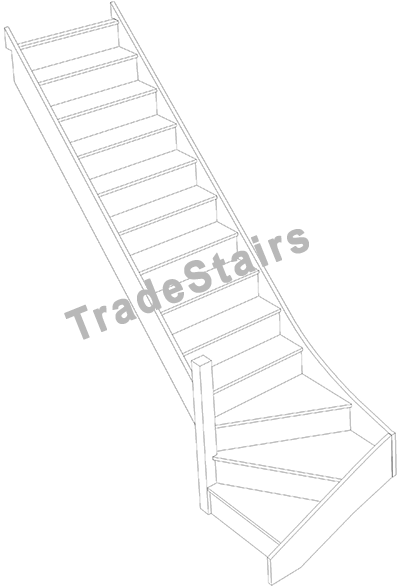

Trade range winder staircase this 13 riser flight winds to the left, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 9mm Plywood
Stub Newel Post - 90 x 90mm Pine

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less.

Select from the Rise heights given and note any changes to the length of the "B" dimension.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.

Trade Range SW39N Winder Staircase R/H No Handrails 760mm OAS

Trade Range SW39N Winder Staircase R/H No Handrails 760mm OAS

Ref: TSW39N-RH-760


Price: 399.00 (Excluding VAT at 20%)

Quantity:


Floor to Floor height 2500 -2600mm

Select Rise - "B" length = 2836mm


Floor to Floor height 2600 - 2700mm

Select Rise - "B" Length = 2908mm


Floor to Floor Height 2700 - 2800mm

Select Rise - "B" Length = 3025mm


Upgrade Treads to Engineered Pine

Upgrade Risers to Pine Faced

Flat-Pack ( The staircase will come part assembled tick this box if you want the staircase to come as a Flat-Pack Kit)

If you would like a Confirmation Drawing before the staircase goes into production this will slightly delay the process. But only by the time it takes you to sign and return you confirmation. (Additional drawings after the first one are £25.00 + vat)

Confirmation drawing

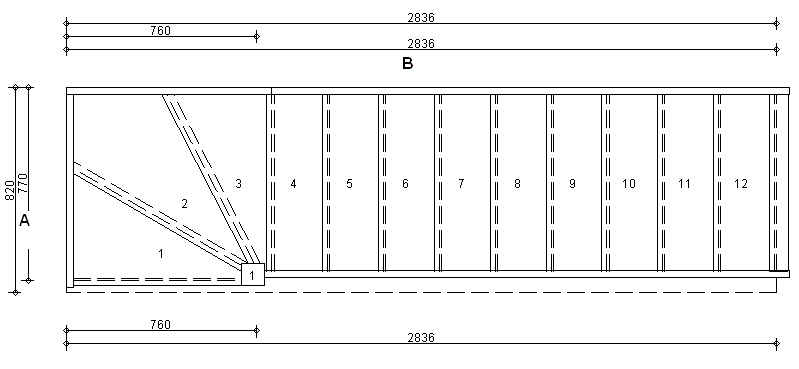

Trade range winder staircase this 13 riser flight winds to the right, Tread 1 is at the bottom of the flight.

Width 760mm Overall strings (790mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 9mm Plywood
Stub Newel Post - 90 x 90mm Pine

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less.

Select from the Rise heights given and note any changes to the length of the "B" dimension.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.

Trade Range SW39N Winder Staircase L/H No Handrails 760mm OAS

Trade Range SW39N Winder Staircase L/H No Handrails 760mm OAS

Ref: TSW39N-LH-760


Price: 399.00 (Excluding VAT at 20%)

Quantity:


Floor to Floor height 2500 -2600mm

Select Rise - "B" length = 2836mm


Floor to Floor height 2600 - 2700mm

Select Rise - "B" Length = 2908mm


Floor to Floor Height 2700 - 2800mm

Select Rise - "B" Length = 3025mm


Upgrade Treads to Engineered Pine

Upgrade Risers to Pine Faced

Flat-Pack ( The staircase will come part assembled tick this box if you want the staircase to come as a Flat-Pack Kit)

If you would like a Confirmation Drawing before the staircase goes into production this will slightly delay the process. But only by the time it takes you to sign and return you confirmation. (Additional drawings after the first one are £25.00 + vat)

Confirmation drawing

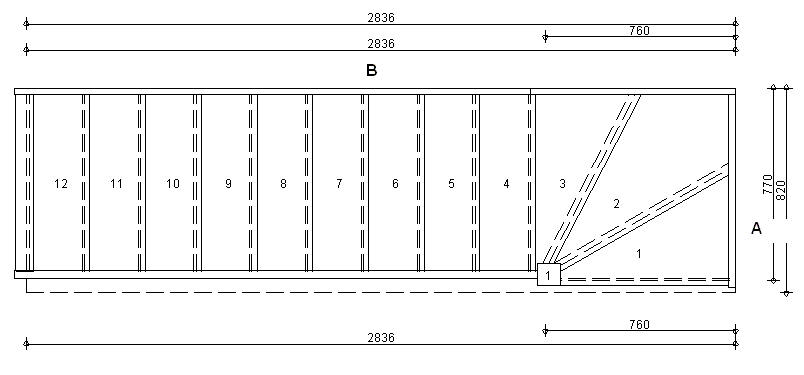

Trade range winder staircase this 13 riser flight winds to the left, Tread 1 is at the bottom of the flight.

Width 760mm Overall strings (790mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 9mm Plywood
Stub Newel Post - 90 x 90mm Pine

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less.

Select from the Rise heights given and note any changes to the length of the "B" dimension.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.

Ordering your staircase online

If you require any assistance when ordering your staircase you can contact us on 01952 608853.

Staircases Manufactured By Stairplan

Staircases Manufactured By Stairplan

Stairplan Staircase Manufacturers

Phone 01952 608853
Fax 01952 228680

Email sales@tradestairs.com

What to Do ?

Tick the box that your floor to floor height falls in between and then select your floor to floor height from the drop down menu.

For a wider selection go the the winder staircases by layout section

Delivery Charges

Currently for online purchases we are only offering delivery for Mainland England and Wales.
The cost of a Staircase Delivery is £99.00 + vat

Our Workshop Facilities

Take a look at our Workshop

We use the latest in CNC technology and have one of the most advanced staircase production facilities in the country.

What is Engineered Pine ?

What is Engineered Pine ?

Engineered Pine is secions of Pine glued together to form a wider section.

Stability - Engineered Pine offers greater stability than wide boards.

Environment - Engineered Pine is better for the environment Our engineered pine comes from managed forests and because smaller sections of timber are used the result is less waste.

Why ? - When it comes to entry level softwood staircases the lowest cost material is Whitewood, whitewood is a fairly soft timber and will usualy have fairly large knots is prone to Shakes and Sap pockets and isnt the best when it comes to stability, all this coupled with the fact that the White wood doesnt match with Pine stairparts is why we have invested in Engineered Pine.
Engineered pine has been used in the Pine furniture industry for many years now and is a proven product.

Price - With our volume buying power and optimimum sized panels we are able to offer staircases made from quality materials at the lowest prices.

Life span - We recommend upgrading your Treads from MDF to Engineered pine this will increase the life time of your staircase.

Stairplan

Stairplan

New Hortonwood Factory in Telford
