S-Vision - Glass

S-Vision Balustrading

S-Vision Balustrading is a New Handrail System Incorporating Toughened Glass -

SALE NOW ON

This System is Unique as the Toughened Glass Balustrading Panels are produced to be able to be used on most staircases with angles from 38 to 45 degrees.

S-Vision offers you the Quality of Toughened Glass Stair Balustrading and Value to compete with lower cost Acrylic Systems.

S-Vision Glass Balustrades will work with the Fusion Handrail System.


You can View the S-Vision Balustrade at our Showroom

Stairplan Ltd
Hortonwood 1
Telford
TF1 7GN

01952 608853

See It - Want It ! - S-Vision Glass Balustrade
S-Vision Landing Balustrading

S-Vision Landing Balustrading

S-Vision Glass Landing Balustrade panels

The S-Vision Landing Glass Panels come in 200 or 300mm Widths, The Maximum Space you can have beween the Panels is 99mm.

We Recommend trying to achieve a space between 40 and 60mm.
S-Vision on a Staircase

S-Vision on a Staircase

This photo shows the S-Vision on a Stairplan Beech openplan Staircase the Handrail and Newel posts are also in Beech.

We can offer the SQ Handrail and Baserails in Ash and Beech Also (Limited lengths in Beech)

This Glass Stair Balustrade is available through Stairplan.

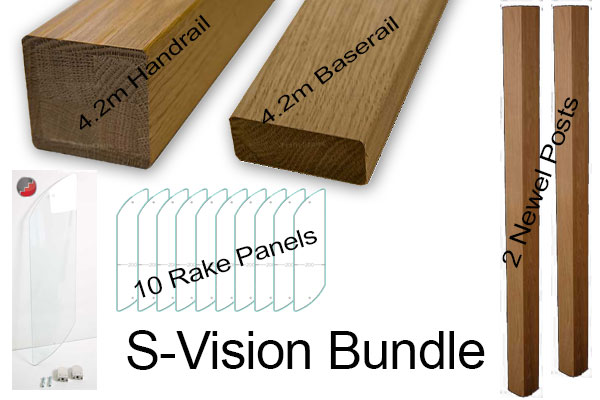

S-Vision Rake Bundle Offer

S-Vision Rake Bundle Offer

Ref: SV-BUNDLE

SV-BUNDLE S-Vision Bundle Offer

Typical Parts required for a Straight Staircase Balustrade

1No 4.2m Of Oak SQ-HR Handrail

1No 4.2m Of Oak SQ-BR Baserail

10No SV-RAKE Glass Balustrade Panels with Fixings

2No WOPAR1500 Oak Square Newel Posts 1500mm Long 90mm section size

2No Stelten Handrail to Newel Fixings

Delivery is £100 + VAT making the package £870 + VAT (4.2 M Rails are in short supply - Check when ordering)


Price: £770.00 (Excluding VAT at 20%)

S-Vision Rake Panel

S-Vision Rake Panel

Remember When Spacing out your S-Vision Glass Panels the Maximum Space in Between the Panels is 99mm

The Number Of Panels Required on a Typical 13 Riser Straight Staircase is 10 SV-RAKE Panels.

Why is it Curved ?

The Curve on the top and the bottom of these panels make the S-Vision a Universal design these panels are designed to work on Staircases with a Pitch between 38 and 42 degrees.

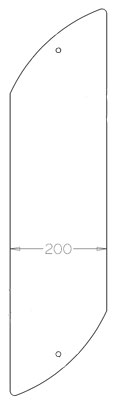

S-Vision Rake Baluster Panel

S-Vision Rake Baluster Panel

Ref: SV-RAKE

SV-RAKE S-Vision Toughened Glass Baluster Rake Panel

SALE
WAS £44.99 + VAT - SALE PRICE ONLY £37.50 + VAT

200mm Horizontal Cover

Standard Height to Achive 900mm When used with Our Standard Handrail and Baserail Profiles on a Closed String Staircase.

8mm Toughened Glass Panel - All Edges Pollished

Including 2 Stainless Steel D-Clamps complete with fixings.


Price: £37.50 (Excluding VAT at 20%)


Bracket Choice


Select Bracket
Select Bracket
Price
Brushed Finish
(+£0.00)
Pollished Finish
(+£2.00)

People who bought this also bought:

White Oak 1500mm 90mm Par Square Newel Section
White Oak Pyramid Newel Cap
S-Vision Landing Panel

S-Vision Landing Panel

Remember When Spacing out your S-Vision Glass Panels the Maximum Space in Between the Panels is 99mm

S-Vision Landing Baluster Panel

S-Vision Landing Baluster Panel

Ref: SV-LAND

SV-Land S-Vision Toughened Glass Baluster Landing Panel


300mm Horizontal Cover

Standard Height to Achive 900mm When used with Our Standard Handrail and Baserail Profiles

8mm Toughened Glass Panel - All Edges Pollished

Including 2 Stainless Steel D-Clamps complete with fixings.


Price: £46.99 (Excluding VAT at 20%)

OUT OF STOCK


Bracket Choice


Select Bracket
Select Bracket
Price
Brushed Finish
(+£0.00)
Pollished Finish
(+£2.00)

S-Vision 200mm Landing Baluster Panel

S-Vision 200mm Landing Baluster Panel

Ref: SV-LAND200

SV-LAND200 S-Vision 200mm Toughened Glass Baluster Landing Panel

200mm Horizontal Cover

Standard Height to Achive 900mm When used with Our Standard Handrail and Baserail Profiles

8mm Toughened Glass Panel - All Edges Pollished

Including 2 Stainless Steel D-Clamps complete with fixings.

Reduced - Was £62.99 + VAT


Price: £42.99 (Excluding VAT at 20%)


Bracket Choice


Select Bracket
Select Bracket
Price
Brushed Finish
(+£0.00)
Pollished Finish
(+£2.00)

People who bought this also bought:

S-Vision Rake Baluster Panel

S-Vision Glass Balustrade Bracket inc fixings

S-Vision Glass Balustrade Bracket inc fixings

Ref: SV-BRAC

SV-BRAC S-Vision Glass Balustrade Bracket

SALE WAS £10.00 + VAT

SALE PRICE £8.49 + VAT


Brushed Stainless Steel Effect

D-Clamp complete with fixings for Timber. Quick Video Guide


Price: £8.49 (Excluding VAT at 20%)

8mm
10mm

S-Vision Toughened Glass

S-Vision Toughened Glass


These Photo's of the New S-Vision Balustrading really dont do it Justice
You can View the S-Vision Balustrade at our showroom.

Stairplan Ltd
Hortonwood 1
Telford
TF1 7GN

01952 608853
S-Vision

S-Vision

High Quality Simple Square Handrail and Baserail Sections

Typical Straight Staircase rake Handrail Requirements

1 x SQHR4200O
1 x SQBR4200O
2 x WOPAR1500
10 x SV-RAKE
2 x STTEO

Guide Price for the parts required for a typical straight staircase balustrade at the sale prices £775 + VAT Plus Delivery

White Oak SQ Handrail 1800mm No Groove

White Oak SQ Handrail 1800mm No Groove

Ref: SQHR1800O

American / European White Oak handrail section.

Square Profile Style

Length 1800mm

66 x 60mm


Price: £64.28 (Excluding VAT at 20%)

White Oak SQ Handrail 2400mm No Groove

White Oak SQ Handrail 2400mm No Groove

Ref: SQHR2400O

American / European White Oak handrail section.

Square Profile Style

Length 2400mm

66 x 60mm


Price: £85.71 (Excluding VAT at 20%)

People who bought this also bought:

White Oak SQ Baserail 2400mm No Groove
Zipbolt Newel Post Fastener

White Oak SQ Handrail 3600mm No Groove

White Oak SQ Handrail 3600mm No Groove

Ref: SQHR3600O

American / European White Oak handrail section.

Square Profile Style

Length 3600mm

66 x 60mm


Price: £128.57 (Excluding VAT at 20%)

White Oak SQ Handrail 3800mm No Groove

White Oak SQ Handrail 3800mm No Groove

Ref: SQHR3800O

American / European White Oak handrail section.
Square Profile Style

Length 3800mm

66 x 60mm


Price: £150.00 (Excluding VAT at 20%)

White Oak SQ Handrail 4200mm No Groove

White Oak SQ Handrail 4200mm No Groove

Ref: SQHR4200O

American / European White Oak handrail section.

Square Profile Style

Length 4200mm

66 x 60mm

Special Order Only


Price: £195.00 (Excluding VAT at 20%)

White Oak SQ Baserail 1800mm No Groove

White Oak SQ Baserail 1800mm No Groove

Ref: SQBR1800O

European / American White Oak Baserail section.

Square Profile Style

Length 1800mm


Price: £32.14 (Excluding VAT at 20%)

White Oak SQ Baserail 2400mm No Groove

White Oak SQ Baserail 2400mm No Groove

Ref: SQBR2400O

European / American White Oak Baserail section.

Square Profile Style

Length 2400mm


Price: £42.86 (Excluding VAT at 20%)

White Oak SQ Baserail 3600mm No Groove

White Oak SQ Baserail 3600mm No Groove

Ref: SQBR3600O

European / American White Oak Baserail section.
Square Profile Style

Length 3600mm


Price: £64.29 (Excluding VAT at 20%)

White Oak SQ Baserail 3800mm No Groove

White Oak SQ Baserail 3800mm No Groove

Ref: SQBR3800O

European / American White Oak Baserail section.

Square Profile Style

Length 3600mm


Price: £75.00 (Excluding VAT at 20%)

White Oak SQ Baserail 4200mm No Groove

White Oak SQ Baserail 4200mm No Groove

Ref: SQBR4200O

European / American White Oak Baserail section.

Square Profile Style

Length 4200mm

Special Order Only


Price: £95.00 (Excluding VAT at 20%)

White Oak 1500mm 90mm Par Square Newel Section

White Oak 1500mm 90mm Par Square Newel Section

Ref: WOPAR1500

American White Oak 90mm Square Newel Post section.

Length 1500mm


Price: £59.04 (Excluding VAT at 20%)

People who bought this also bought:

White Oak SQ Baserail 3600mm No Groove
White Oak Square half Newel Post*

White Oak Square half Newel Post*

White Oak Square half Newel Post*

Ref: WOSQN1500HALF

American White Oak 90mm Square Half Newel Post.

Length 1500mm


Price: £42.88 (Excluding VAT at 20%)

People who bought this also bought:

White Oak SQ Handrail 3600mm No Groove
White Oak Baserail 3600mm 41mm

White Oak Square PLUG IN Newel Post

White Oak Square PLUG IN Newel Post

Ref: STSQN160

White Oak PLUG IN 90mm Square Newel Post.

Length 725mm (Plus Spigot)

Ex 90mm Section

Special Offer Was £45.50 + VAT NOW £39.00 + VAT

Bespoke Item produced upon order - No Retuns Policy


Price: £39.00 (Excluding VAT at 20%)

People who bought this also bought:

White Oak HDR Handrail 3600mm 41mm
White Oak HDR Handrail 2400mm 41mm

White Oak 2400mm 90mm Par Square Newel Section

White Oak 2400mm 90mm Par Square Newel Section

Ref: WOPAR2400

American White Oak 90mm Square Newel Post section.

Length 2400mm


Price: £119.99 (Excluding VAT at 20%)

White Oak 3000mm 90mm Par Square Newel Section

White Oak 3000mm 90mm Par Square Newel Section

Ref: WOPAR3000

American White Oak 90mm Square Newel Post section.

Length 3000mm


Price: £149.99 (Excluding VAT at 20%)

White Oak 3600mm 90mm Par Square Newel Section

White Oak 3600mm 90mm Par Square Newel Section

Ref: WOPAR3600

American White Oak 90mm Square Newel Post section.

Length 3600mm


Price: £180.00 (Excluding VAT at 20%)

Stelten Handrail Fixing complete with a Oak Pellet

Stelten Handrail Fixing complete with a Oak Pellet

Ref: STTEO

Stelten Steel Tenon Handrail fixing

The Stelten fixings offer the tradesmen a easy and quality method of fixing the handrail to a newel post, these fixings have a many other uses aswell.

Complete with through fixing , washer and a 30mm Oak Pellet.

Hole size required 30mm
Short How To Video on the Stelten Handrail Fixing


Price: £6.00 (Excluding VAT at 20%)

People who bought this also bought:

30mm Flat Spade Type Drill Bit
S-Vision Glass Balustrade Bracket inc fixings
A Recent S-Vision Stair Installation

A Recent S-Vision Stair Installation

Photo showing a Stair fitted with the S-Vision Stair Balustrading
We Also Offer The Vision Glass Balustrade Option

We Also Offer The Vision Glass Balustrade Option

We also offer the More Bespoke Vision Glass Balustrade - this can be requested as option if you are looking for a quotation on a new staircase.
Vision Glass Stair Balustrading

Vision Glass Stair Balustrading

8mm Toughened Glass Bespoke Balustrade Panels

Shown with the SQ Oak Handrail and Baserail sections

Ask For Vision Balustrade when requesting your staircase estimate.

The Vision Balustrade option is more expensive than S-Vision as the Panels are made Bespoke to the staircase rather than a Universal Panel.

Glass Balustrade Panels - Calculate and Order Online

Fax your Staircase Enquiry to 01952 228679
Email - sales@stairplan.com
Look at the Fusion Acrylic

Look at the Fusion Acrylic

S-Vision Glass with Fusion Handrail Parts

S-Vision Glass with Fusion Handrail Parts

Here you can see S-Vision Glass with the Fusion Handrail System
This was installed by John from Stairfix
Fusion Stair Conversion

Fusion Stair Conversion

Fusion Stair Conversion with the S-Vision Glass Balustrade Panels
New - Oak Stair Klad

New - Oak Stair Klad

Clad the Treads and Risers on your Existing Staircase

Go to The Stair Klad Product Page

Stair Tread Covers
Stair Riser Facings
Stair String Veneers
Online Glass Balustrade Panels

Online Glass Balustrade Panels

New online facility to design and order your glass balustrade panels online.

Calculates single and multiple panel scenarios.

8mm and 10mm Toughened glass panels available.

Options
Have the glass to sit into a grooved handrail and baserail or mounted on Stainless steel glass brackets.

Click Here to Go to the Online Glass Planner.

This new planner uses HTML 5 and requires you to have one of the Latest Browsers Firefox is Preffered but Safari, Chrome will work.
