Ecostair S1W38N Winder Staircase

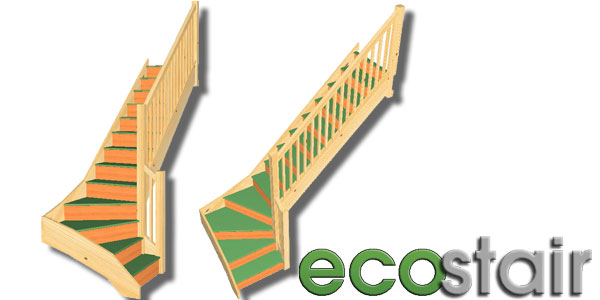

Ecostair winder staircase this 13 riser flight winds to the right, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 12mm MDF
Typical String Depth 220mm
Stub Newel Post - 90 x 90mm Pine

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less.

Select from the Rise heights given and note any changes to the length of the "A" and "B" dimensions.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.

Ecostair winder staircase this 13 riser flight winds to the right, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 12mm MDF
Typical String Depth 220mm
Newel Posts - 90 x 90mm Pine Square
Spindles - 32mm Pine Square
Handrail - Pine STHR Profile
Baserail - Pine STBR Profile

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less. The Handrail is over 900mm high.

What you get - The stair strings on the face side are Tenoned ready for the newel posts, the newel posts are morticed ready for the strings.
The Handrail is Cut to size
The Baserail is Cut to size
The Spindles are Cut to size
Fillets are supplied Oversize
Handrail Fixings - Included



Select from the Rise heights given and note any changes to the length of the "A" and "B" dimensions.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.

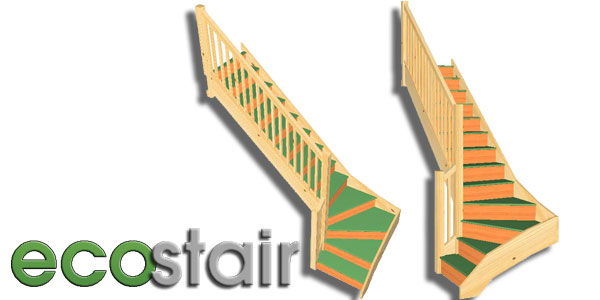

Ecostair winder staircase this 13 riser flight winds to the left, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 12mm MDF
Typical String Depth 220mm
Stub Newel Post - 90 x 90mm Pine

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less.

Select from the Rise heights given and note any changes to the length of the "A" and "B" dimensions.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.

Ecostair winder staircase this 13 riser flight winds to the left, Tread 1 is at the bottom of the flight.

Width 860mm Overall strings (890mm Overall newel)

Specification
Strings - 32mm Engineered Pine
Treads - 22mm MDF
Risers - 12mm MDF
Typical String Depth 220mm
Newel Posts - 90 x 90mm Pine Square
Spindles - 32mm Pine Square
Handrail - Pine STHR Profile
Baserail - Pine STBR Profile

This staircase is made to comply with building regulations Part K for England and Wales. the Pitch if the staircase will be 42 degrees or less. The Handrail is over 900mm high.

What you get - The stair strings on the face side are Tenoned ready for the newel posts, the newel posts are morticed ready for the strings.
The Handrail is Cut to size
The Baserail is Cut to size
The Spindles are Cut to size
Fillets are supplied Oversize
Handrail Fixings - Included



Select from the Rise heights given and note any changes to the length of the "A" and "B" dimensions.
The Dimensions shown are Floor Plan Dimensions.

Select only one of the Floor to Floor ranges and your Floor to Floor Height, ensure the correct size is shown when the staircase has been added to the shopping cart.

It is recommended that the stairwell is the same size as the staircase.
We accept no responsability for Headroom Issues.

Please note some of the options listed are additional cost.
