Trade Line Value Oak Staircases

Oak Staircase TradeStairs online offer

Special Limited Availablility Offer

The Trade Line Range of Oak Staircases is a value range of Oak Staircases.
Availability is subject to material stocks of the Value Engineered Oak String material used in this staircase offer.

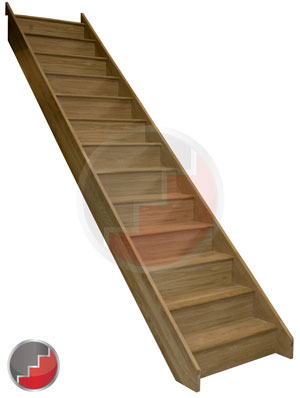

Trade Line Oak 12 Riser Straight Staircase, Pine Treads, Ply risers

Trade Line Oak 12 Riser Straight Staircase, Pine Treads, Ply risers

Ref: S11NOAKP

This is for a Trade Line 12 Riser Straight Staircase, the staircase will be made to 42º please select from the options provided.

Trade Line Oak Specification

Strings - 27mm Engineered White Oak Stair Strings A/B Grade
Treads - 22mm Engineered Pine
Risers - 12mm Plywood
Typical String Depth 240mm

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical lead time on these is 7 to 10 days from approval of production drawings, subject to your location and logistics.

A confirmation drawing will be sent showing the staircase to your selected dimensions this will need to be approved before production commences.

Price: £469.00 (Excluding VAT at 20%)

Help on Rise and going

Trade Line Oak 13 Riser Straight Staircase, Pine Treads, Ply risers

Trade Line Oak 13 Riser Straight Staircase, Pine Treads, Ply risers

Ref: S12NOAKP

This is for a Trade Line 13 Riser Straight Staircase, the staircase will be made to 42º please select from the options provided.

Trade Line Oak Specification

Strings - 27mm Engineered White Oak Stair Strings A/B Grade
Treads - 22mm Engineered Pine
Risers - 12mm Plywood
Typical String Depth 240mm

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical lead time on these is 7 to 10 days from approval of production drawings, subject to your location and logistics.

A confirmation drawing will be sent showing the staircase to your selected dimensions this will need to be approved before production commences.

Price: £499.00 (Excluding VAT at 20%)

Help on Rise and Going

Trade Line Oak 14 Riser Straight Staircase, Pine Treads, Ply risers

Trade Line Oak 14 Riser Straight Staircase, Pine Treads, Ply risers

Ref: S13NOAKP

This is for a Trade Line 14 Riser Straight Staircase, the staircase will be made to 42º please select from the options provided.

Trade Line Oak Specification

Strings - 27mm Engineered White Oak Stair Strings A/B Grade
Treads - 22mm Engineered Pine
Risers - 12mm Plywood
Typical String Depth 240mm

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical lead time on these is 7 to 10 days from approval of production drawings, subject to your location and logistics.

A confirmation drawing will be sent showing the staircase to your selected dimensions this will need to be approved before production commences.

Price: £599.00 (Excluding VAT at 20%)

Help on Rise and Going

Trade Line 12 Riser Oak Straight Staircase

Trade Line 12 Riser Oak Straight Staircase

Ref: S11NOAK

This is for a Trade Line 12 Riser Straight Staircase, the staircase will be made to 42º please select from the options provided.

Trade Line Oak Specification

Strings - 27mm Engineered White Oak Stair Strings A/B Grade
Treads - 22mm EdgeLam White Oak
Risers - 12mm Oak Faced MDF
Typical String Depth 240mm

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical lead time on these is 7 to 10 days from approval of production drawings, subject to your location and logistics.

A confirmation drawing will be sent showing the staircase to your selected dimensions this will need to be approved before production commences.

Price: £695.00 (Excluding VAT at 20%)

Help on Rise and going

Trade Line 13 Riser Straight Oak Staircase

Trade Line 13 Riser Straight Oak Staircase

Ref: S12NOAK

This is for a Trade Line 13 Riser Straight Staircase, the staircase will be made to 42º please select from the options provided.

Trade Line Oak Specification

Strings - 27mm Engineered White Oak Stair Strings A/B Grade
Treads - 22mm EdgeLam White Oak
Risers - 12mm Oak Faced MDF
Typical String Depth 240mm

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical lead time on these is 7 to 10 days from approval of production drawings, subject to your location and logistics.

A confirmation drawing will be sent showing the staircase to your selected dimensions this will need to be approved before production commences.

Price: £745.00 (Excluding VAT at 20%)

Help on Rise and Going

Closer View

Closer View

This is a closer look at our entry level oak Staircase.

Engineered White Oak Stair Strings
22mm White Oak Treads with a Round Nosing
9mm Oak Faced Plywood Risers

Oak Staircases With Handrail

Trade Line Oak 12 Riser Straight Staircase with Handrail L/H

Trade Line Oak 12 Riser Straight Staircase with Handrail L/H

Ref: S11NOAKSQLH

This is for a Trade Line 12 Riser Straight Staircase With handrail on the Left hand side, the staircase will be made to 42º please select from the options provided.

Trade Line Oak Specification

Strings - 27mm Engineered White Oak Stair Strings A/B Grade
Treads - 22mm EdgeLam White Oak
Risers - 12mm Oak Faced MDF
Typical String Depth 240mm

Handrail Specification.
Newel Posts 90mm Square White Oak
Handrail Oak Profile - CM HR
Baserail Oak Profile - CM BR
Balusters Oak 41mm Square.

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical production time on these is 2 weeks, then delivery subject to a delivery run in your area.

A confirmation drawing will be sent showing the staircase to your selected dimensions this will need to be approved before production commences.

Please Note the Image provided is for illustration only

Price: £1,195.00 (Excluding VAT at 20%)

(When Upgrading to Turned Parts - 90mm Turned Newel posts complete with Ball Newel Caps and Colonial Spindles)

Help on Rise and going

Trade Line Oak 12 Riser Straight Staircase with Handrail R/H

Trade Line Oak 12 Riser Straight Staircase with Handrail R/H

Ref: S11NOAKSQRH

This is for a Trade Line 12 Riser Straight Staircase With handrail on the Right hand side, the staircase will be made to 42º please select from the options provided.

Trade Line Oak Specification

Strings - 27mm Engineered White Oak Stair Strings A/B Grade
Treads - 22mm EdgeLam White Oak
Risers - 12mm Oak Faced MDF
Typical String Depth 240mm

Handrail Specification.
Newel Posts 90mm Square White Oak
Handrail Oak Profile - CM HR
Baserail Oak Profile - CM BR
Balusters Oak 41mm Square.

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical production time on these is 2 weeks, then delivery subject to a delivery run in your area.

A confirmation drawing will be sent showing the staircase to your selected dimensions this will need to be approved before production commences.

Please Note the Image provided is for illustration only

Price: £1,195.00 (Excluding VAT at 20%)

(When Upgrading to Turned Parts - 90mm Turned Newel posts complete with Ball Newel Caps and Colonial Spindles)

Help on Rise and going

DOWNLOAD MEASURING GUIDE

Download our Stair Measuring Guide and Email your dimensions for a quotation

Stair Measuing Guide Sheet - Straight Staircase Handrail Left Side

Trade Line Oak 13 Riser Straight Staircase with Handrail L/H

Trade Line Oak 13 Riser Straight Staircase with Handrail L/H

Ref: S12NOAKSQLH

This is for a Trade Line 13 Riser Straight Staircase With handrail on the Left hand side, the staircase will be made to 42º please select from the options provided.

Trade Line Oak Specification

Strings - 27mm Engineered White Oak Stair Strings A/B Grade
Treads - 22mm EdgeLam White Oak
Risers - 12mm Oak Faced MDF
Typical String Depth 240mm

Handrail Specification.
Newel Posts 90mm Square White Oak
Handrail Oak Profile - CM HR
Baserail Oak Profile - CM BR
Balusters Oak 41mm Square.

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical production time on these is 2 weeks, then delivery subject to a delivery run in your area.

A confirmation drawing will be sent showing the staircase to your selected dimensions this will need to be approved before production commences.

Please Note the Image provided is for illustration only

Price: £1,230.00 (Excluding VAT at 20%)

(When Upgrading to Turned Parts - 90mm Turned Newel posts complete with Ball Newel Caps and Colonial Spindles)

Help on Rise and going

Trade Line Oak 13 Riser Straight Staircase with Handrail R/H

Trade Line Oak 13 Riser Straight Staircase with Handrail R/H

Ref: S12NOAKSQRH

This is for a Trade Line 13 Riser Straight Staircase With handrail on the Right hand side, the staircase will be made to 42º please select from the options provided.

Trade Line Oak Specification

Strings - 27mm Engineered White Oak Stair Strings A/B Grade
Treads - 22mm EdgeLam White Oak
Risers - 12mm Oak Faced MDF
Typical String Depth 240mm

Handrail Specification.
Newel Posts 90mm Square White Oak
Handrail Oak Profile - CM HR
Baserail Oak Profile - CM BR
Balusters Oak 41mm Square.

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical production time on these is 2 weeks, then delivery subject to a delivery run in your area.

A confirmation drawing will be sent showing the staircase to your selected dimensions this will need to be approved before production commences.

Please Note the Image provided is for illustration only

Price: £1,230.00 (Excluding VAT at 20%)

(When Upgrading to Turned Parts - 90mm Turned Newel posts complete with Ball Newel Caps and Colonial Spindles)

Help on Rise and going

DOWNLOAD STAIR MEASURING GUIDE

Download our Stair Measuring Guide and Email your dimensions for a quotation

Stair Measuing Guide Sheet - Straight Staircase Handrail Right Side
Bullnose entry step

Bullnose entry step

The optional bullnose entry step detail.
Need The Landing Balustrade

Need The Landing Balustrade

For the Additional Balustrade parts for your Staircase Look at our White Oak Stairparts Range

Information

Engineered Oak Strings

Far East Production, These will contain Joints in the Length and Section

CM HR - Refers to Cheshire Mouldings HR Handrail Pattern
CM BR - Refers to Cheshire Mouldings BR Baserail Section

Important Information on Oak Handrails
