Quarter Landing Spacesaver Stairs Right Hand

Right Hand Quarter Turn Space Saver Stair Layouts

Bottom Quarter Landing Layout

Bottom Quarter Landing Layout

SS-SQL11N R/H HR

13 Riser Layout shown but also available in 12, 13, 14, 15 Riser layouts and more.

Bottom Quarter Landing Budget Spacesaver Staircase

Bottom Quarter Landing Budget Spacesaver Staircase

Ref: SS-SQL11N-RH-HR

Quarter Landing Budget Spacesaver Staircase .

This staircase will have 13 risers,
Specification
Strings 32mm EdgeLam Engineered Pine
Treads 30mm MDF
Risers 12mm MDF
90mm EdgeLam Pine Square Newel Posts
32mm Pine Square Balusters
STHR EdgeLam Pine Handrail
STBR EdgeLam Pine Baserail

When ordering please select your rise height you can choose a height between 2500 and 2800mm
The Rise is the Floor to floor Height.

You can also select your width., the A & B dimensions will be adjusted with the Width


This staircase is made to the requirments set out in the UK Building Regulations document K for Alternating Tread Staircases.

Note - Please Note Treads on Alternating Tread Staircases require a Anti Slip Resistant Surface applying following installation - The Staircase is Not Supplied with any Anti Slip material and it is the responsability of the client to ensure this is carried out. Recomendations can be found in Document BS EN-15644 2008.

Price: £899.00 (Excluding VAT at 20%)

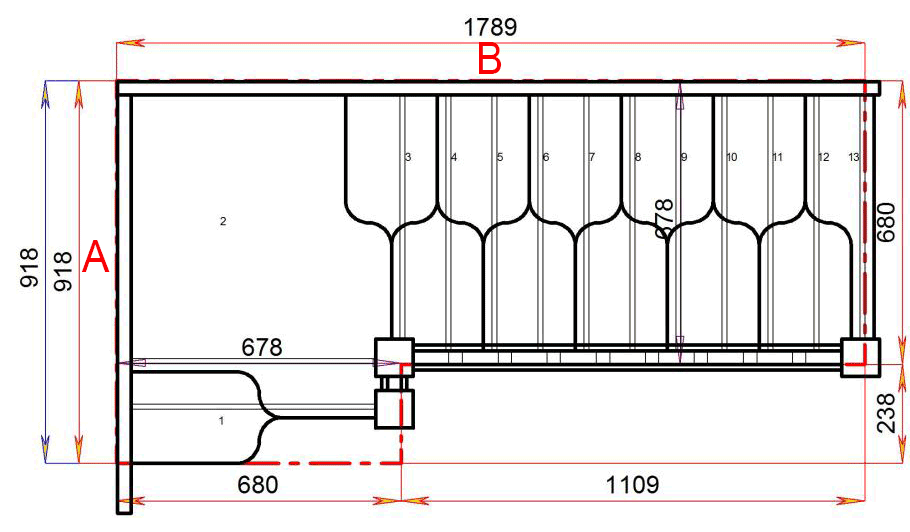

SS-S1QL10N R/H Stair Design

SS-S1QL10N R/H Stair Design

With a Single step before the quarter landing turn the SS-S1QL10N could be the loft stair layout you are looking for.

SS-S1QL10N R/H Quarter Landing Budget Spacesaver Staircase

SS-S1QL10N R/H Quarter Landing Budget Spacesaver Staircase

Ref: SS-S1QL10N-RH-HR

Quarter Landing Budget Spacesaver Staircase .

This staircase will have 13 risers,
Specification
Strings 32mm EdgeLam Engineered Pine
Treads 30mm MDF
Risers 12mm MDF
90mm EdgeLam Pine Square Newel Posts
32mm Pine Square Balusters
STHR EdgeLam Pine Handrail
STBR EdgeLam Pine Baserail

When ordering please select your rise height you can choose a height between 2500 and 2800mm
The Rise is the Floor to floor Height.

You can also select your width., the A & B dimensions will be adjusted with the Width


This staircase is made to the requirments set out in the UK Building Regulations document K for Alternating Tread Staircases.

Note - Please Note Treads on Alternating Tread Staircases require a Anti Slip Resistant Surface applying following installation - The Staircase is Not Supplied with any Anti Slip material and it is the responsability of the client to ensure this is carried out. Recomendations can be found in Document BS EN-15644 2008.

Price: £899.00 (Excluding VAT at 20%)



SS-S2QL9N R/H Quarter Turn Space Saving Staircase

SS-S2QL9N R/H Quarter Turn Space Saving Staircase

This stair layout has 2 treads before the landing turn , select your floor to floor height and width when ordering.

SS-S2QL9N R/H Quarter Landing Budget Spacesaver Staircase

SS-S2QL9N R/H Quarter Landing Budget Spacesaver Staircase

Ref: SS-S2QL9N-RH-HR

Quarter Landing Budget Spacesaver Staircase .

This staircase will have 13 risers,
Specification
Strings 32mm EdgeLam Engineered Pine
Treads 30mm MDF
Risers 12mm MDF
90mm EdgeLam Pine Square Newel Posts
32mm Pine Square Balusters
STHR EdgeLam Pine Handrail
STBR EdgeLam Pine Baserail

When ordering please select your rise height you can choose a height between 2500 and 2800mm
The Rise is the Floor to floor Height.

You can also select your width., the A & B dimensions will be adjusted with the Width


This staircase is made to the requirments set out in the UK Building Regulations document K for Alternating Tread Staircases.

Note - Please Note Treads on Alternating Tread Staircases require a Anti Slip Resistant Surface applying following installation - The Staircase is Not Supplied with any Anti Slip material and it is the responsability of the client to ensure this is carried out. Recomendations can be found in Document BS EN-15644 2008.

Price: £899.00 (Excluding VAT at 20%)



SS-S3QL8N R/H Quarter Turn Space Saving Staircase

SS-S3QL8N R/H Quarter Turn Space Saving Staircase

3 treads before the landing turn this stair design starts shortening the second run length as we progress in adding steps to the bottom , select your floor to floor height and width when ordering.

SS-S3QL8N R/H Quarter Landing Budget Spacesaver Staircase

SS-S3QL8N R/H Quarter Landing Budget Spacesaver Staircase

Ref: SS-S3QL8N-RH-HR

Quarter Landing Budget Spacesaver Staircase .

This staircase will have 13 risers,
Specification
Strings 32mm EdgeLam Engineered Pine
Treads 30mm MDF
Risers 12mm MDF
90mm EdgeLam Pine Square Newel Posts
32mm Pine Square Balusters
STHR EdgeLam Pine Handrail
STBR EdgeLam Pine Baserail

When ordering please select your rise height you can choose a height between 2500 and 2800mm
The Rise is the Floor to floor Height.

You can also select your width., the A & B dimensions will be adjusted with the Width


This staircase is made to the requirments set out in the UK Building Regulations document K for Alternating Tread Staircases.

Note - Please Note Treads on Alternating Tread Staircases require a Anti Slip Resistant Surface applying following installation - The Staircase is Not Supplied with any Anti Slip material and it is the responsability of the client to ensure this is carried out. Recomendations can be found in Document BS EN-15644 2008.

Price: £899.00 (Excluding VAT at 20%)



SS-S4QL7N R/H Quarter Turn Space Saving Staircase

SS-S4QL7N R/H Quarter Turn Space Saving Staircase

With 4 treads before the quarter landing turn this stair design starts entering in to the mid landing range of stair layouts.

We will add this to be available to order online shortly in the mean time give us a call 01952 602750
