Straight Stairs With Handrails

Staircases to Order online

Staircases to Order online

If you require any assistance when ordering your staircase you can contact us on 01952 602750.

Widths from 600mm to 900mm Overall the Strings

Floor Heights from 2300mm to 3080mm Available to Order online.

Phone for Bespoke Sizes.

Superior Quality

We use Quality selected Redwood (Pine) stair strings we call this Engineered Pine, Engineered Pine is in Short Edge Glued Live Kotted Pine Material as found in Pine Furniture, the material is dried to a lower moisture content than standard joinery grade material and with this being engineered to the wide board sizes required for staircase production we get a quality product with greater stability. Pine is also better when it comes to decorating the staircase compared to Whitewood.
New for the Craftsmans Range of Staircases - Interlocking Glue Blocks for increased Life and anti-Creak

Trade-Range Staircase

The Trade Range Staircase Specification

* Robust 32mm EdgeLam Engineered Pine Stair Strings with a Heavy 250mm String Depth
* 12mm Plywood Riser Sections
* STHR Quality EdgeLam Pine Handrail


We now have help videos online - Straight Staircase install with Newels

Trade Range 12 Riser Straight Staircase With Handrails on the Left

Trade Range 12 Riser Straight Staircase With Handrails on the Left

Ref: TS11N-HR-LH

This is for a Trade Range 12 Riser Straight Staircase with handrails on the left hand side going up the staircase, the staircase will be made to 42º please select from the options provided.

Specification
Strings - 32mm EdgeLam Engineered Pine
Typical String Depth 250mm
Treads - 22mm MDF
Risers - 12mm MDF
Newel Posts - 90 x 90mm EdgeLam Pine Square
Spindles - 32 x 32mm Pine Square
Handrail - EdgeLam Pine STHR Profile
Baserail - EdgeLam Pine STBR Profile

Please note the newel posts will add 30mm to the overall width.

What you get - The stair strings on the face side are Tenoned ready for the newel posts, the newel posts are morticed ready for the strings and the handrails, the handrail is Pre-cut , the Baserail is Pre-cut - the Spindles are Pre-cut, the Fillets are supplied oversize (You will need to cut these). Newel caps are not supplied.

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical production time on these is 2 weeks, then delivery subject to a delivery run in your area.

Price: £465.00 (Excluding VAT at 20%)

CATALOG SUSPENDED

Help on Rise and going

Trade Range 13 Riser Straight Staircase With Handrails on the Left

Trade Range 13 Riser Straight Staircase With Handrails on the Left

Ref: TS12N-HR-LH

This is for a Trade Range 13 Riser Straight Staircase with handrails on the left hand side going up the staircase, the staircase will be made to 42º please select from the options provided.

Specification
Strings - 32mm EdgeLam Engineered Pine
Typical String Depth 250mm
Treads - 22mm MDF
Risers - 12mm MDF
Newel Posts - 90 x 90mm EdgeLam Pine Square
Spindles - 32 x 32mm Pine Square
Handrail - EdgeLam Pine STHR Profile
Baserail - EdgeLam Pine STBR Profile

Please note the newel posts will add 30mm to the overall width.

What you get - The stair strings on the face side are Tenoned ready for the newel posts, the newel posts are morticed ready for the strings and the handrails, the handrail is Pre-cut , the Baserail is Pre-cut - the Spindles are Pre-cut, the Fillets are supplied oversize (You will need to cut these). Newel caps are not supplied.

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical production time on these is 2 weeks, then delivery subject to a delivery run in your area.

Price: £465.00 (Excluding VAT at 20%)

CATALOG SUSPENDED

Help on Rise and going

Trade Range 14 Riser Straight Staircase With Handrails on the Left

Trade Range 14 Riser Straight Staircase With Handrails on the Left

Ref: TS13N-HR-LH

This is for a Trade Range 14 Riser Straight Staircase with handrails on the left hand side going up the staircase, the staircase will be made to 42º please select from the options provided.

Specification
Strings - 32mm EdgeLam Engineered Pine
Typical String Depth 250mm
Treads - 22mm MDF
Risers - 12mm MDF
Newel Posts - 90 x 90mm EdgeLam Pine Square
Spindles - 32 x 32mm Pine Square
Handrail - EdgeLam Pine STHR Profile
Baserail - EdgeLam Pine STBR Profile

Please note the newel posts will add 30mm to the overall width.

What you get - The stair strings on the face side are Tenoned ready for the newel posts, the newel posts are morticed ready for the strings and the handrails, the handrail is Pre-cut , the Baserail is Pre-cut - the Spindles are Pre-cut, the Fillets are supplied oversize (You will need to cut these). Newel caps are not supplied.

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical production time on these is 2 weeks, then delivery subject to a delivery run in your area.

Price: £495.00 (Excluding VAT at 20%)

CATALOG SUSPENDED

Help on Rise and going

DOWNLOAD MEASURING GUIDE

Download our Stair Measuring Guide and Email your dimensions for a quotation

Stair Measuing Guide Sheet - Straight Staircase Handrail Left Side

Trade Range 12 Riser Straight Staircase With Handrails on the Right

Trade Range 12 Riser Straight Staircase With Handrails on the Right

Ref: TS11N-HR-RH

This is for a Trade Range 12 Riser Straight Staircase with handrails on the right hand side going up the staircase, the staircase will be made to 42º please select from the options provided.

Specification
Strings - 32mm EdgeLam Engineered Pine
Typical String Depth 250mm
Treads - 22mm MDF
Risers - 12mm MDF
Newel Posts - 90 x 90mm EdgeLam Pine Square
Spindles - 32 x 32mm Pine Square
Handrail - EdgeLam Pine STHR Profile
Baserail - EdgeLam Pine STBR Profile

Please note the newel posts will add 30mm to the overall width.

What you get - The stair strings on the face side are Tenoned ready for the newel posts, the newel posts are morticed ready for the strings and the handrails, the handrail is Pre-cut , the Baserail is Pre-cut - the Spindles are Pre-cut, the Fillets are supplied oversize (You will need to cut these). Newel caps are not supplied.

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical production time on these is 2 weeks, then delivery subject to a delivery run in your area.

Price: £465.00 (Excluding VAT at 20%)

CATALOG SUSPENDED

Help on Rise and going

Trade Range 13 Riser Straight Staircase With Handrails on the Right

Trade Range 13 Riser Straight Staircase With Handrails on the Right

Ref: TS12N-HR-RH

This is for a Trade Range 13 Riser Straight Staircase with handrails on the right hand side going up the staircase, the staircase will be made to 42º please select from the options provided.

Specification
Strings - 32mm EdgeLam Engineered Pine
Typical String Depth 250mm
Treads - 22mm MDF
Risers - 12mm MDF
Newel Posts - 90 x 90mm EdgeLam Pine Square
Spindles - 32 x 32mm Pine Square
Handrail - EdgeLam Pine STHR Profile
Baserail - EdgeLam Pine STBR Profile

Please note the newel posts will add 30mm to the overall width.

What you get - The stair strings on the face side are Tenoned ready for the newel posts, the newel posts are morticed ready for the strings and the handrails, the handrail is Pre-cut , the Baserail is Pre-cut - the Spindles are Pre-cut, the Fillets are supplied oversize (You will need to cut these). Newel caps are not supplied.

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical production time on these is 2 weeks, then delivery subject to a delivery run in your area.

Price: £465.00 (Excluding VAT at 20%)

CATALOG SUSPENDED

Help on Rise and going

Trade Range 14 Riser Straight Staircase With Handrails on the Right

Trade Range 14 Riser Straight Staircase With Handrails on the Right

Ref: TS13N-HR-RH

This is for a Trade Range 14 Riser Straight Staircase with handrails on the right hand side going up the staircase, the staircase will be made to 42º please select from the options provided.

Specification
Strings - 32mm EdgeLam Engineered Pine
Typical String Depth 250mm
Treads - 22mm MDF
Risers - 12mm MDF
Newel Posts - 90 x 90mm EdgeLam Pine Square
Spindles - 32 x 32mm Pine Square
Handrail - EdgeLam Pine STHR Profile
Baserail - EdgeLam Pine STBR Profile

Please note the newel posts will add 30mm to the overall width.

What you get - The stair strings on the face side are Tenoned ready for the newel posts, the newel posts are morticed ready for the strings and the handrails, the handrail is Pre-cut , the Baserail is Pre-cut - the Spindles are Pre-cut, the Fillets are supplied oversize (You will need to cut these). Newel caps are not supplied.

Staircases with individual riser heights less than 198mm will have a individual going size of 220mm so the pitch will be slightly less than 42º

The Rise is the Floor to floor Height.

Typical production time on these is 2 weeks, then delivery subject to a delivery run in your area.

Price: £495.00 (Excluding VAT at 20%)

CATALOG SUSPENDED

Help on Rise and going

DOWNLOAD MEASURING GUIDE

Download our Stair Measuring Guide and Email your dimensions for a quotation

Stair Measuing Guide Sheet - Straight Staircase Handrail Right Side

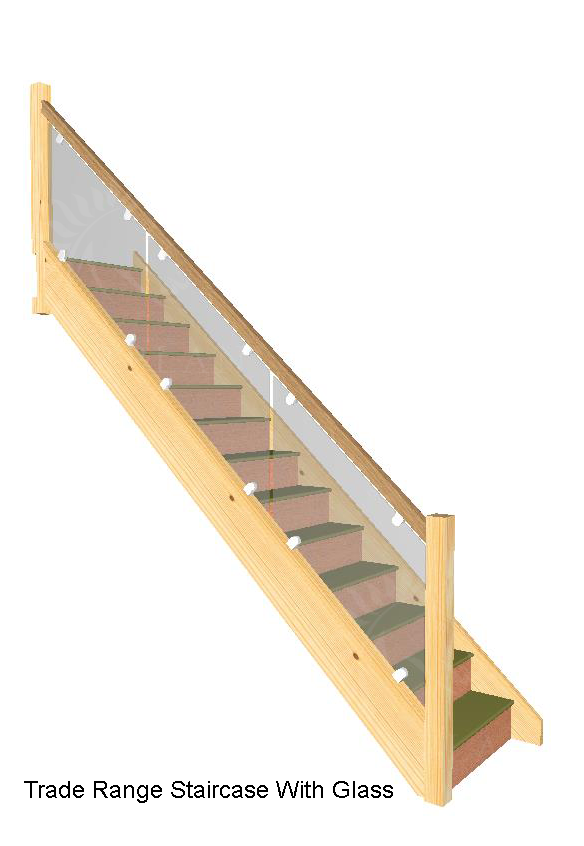

New - Trade Range With Glass

New - Trade Range With Glass

New Model Option

Trade Range Staircase with Glass
Prices Start at £745 Excluding VAT

Straight Staircase with the glass and Oak Balustade to One Side

32mm EdgeLam Pine Strings
22mm MDF Treads
12MM MDF Risers
90mm Pine Square Newel Posts
Oak HR Handrail with Infill
Pine STBR Baserail with Oak Infill
8mm Toughened Glass Panels With Brackets

Model Reference - Trade Range With Glass
Bullnose entry step

Bullnose entry step

The optional bullnose entry step detail.

Want a Oak Staight Staircase

Square Newel Posts and Balusters

Square Newel Posts and Balusters

This image shows you a Engineered Pine staircase with the 90mm square newel post and 32mm square balusters.

Fitting the Stair Balustrade

Ordering your staircase online

If you require any assistance when ordering your staircase you can contact us on 01952 608853

Delivery Charges

Currently for online purchases we are only offering delivery for Mainland England and Wales.
The cost of a Staircase Delivery is £99.00 + vat

Our Workshop Facilities

Take a look at our Workshop

We use the latest in CNC technology and have one of the most advanced staircase production facilities in the country.
What is Engineered Pine ?

What is Engineered Pine ?

Engineered Pine is secions of Pine glued together to form a wider section.

Stability - Engineered Pine offers greater stability than wide boards.

Environment - Engineered Pine is better for the environment Our engineered pine comes from managed forests and because smaller sections of timber are used the result is less waste.

Why ? - When it comes to entry level softwood staircases the lowest cost material is Whitewood, whitewood is a fairly soft timber and will usualy have fairly large knots is prone to Shakes and Sap pockets and isnt the best when it comes to stability, all this coupled with the fact that the White wood doesnt match with Pine stairparts is why we have invested in Engineered Pine.
Engineered pine has been used in the Pine furniture industry for many years now and is a proven product.

Price - With our volume buying power and optimimum sized panels we are able to offer staircases made from quality materials at the lowest prices.

Life span - We recommend upgrading your Treads from MDF to Engineered pine this will increase the life time of your staircase.

EdgeLam- Edglam is a Higher Quality grade of Edge Laminated Engineered Pine, Select timbers sourced from North of the Artic Circle slow grown with tigher growth rings and better stability.
Laminated in the UK.

Site map

Not Quite what you are looking for ?

If the size of what we have available to order online isnt to your requirments and you need something a liitle more bespoke or you would like your staircase in something like Oak contact us with your requirments.

Phone 01952 608853


Email - sales@stairplan.com

For More information on the stairs we can offer visit Stairplan.com
Stairplan

Stairplan

At Stairplan we specialise in the manufacture of staircases, this photo will give you some idea of the more bespoke staircases we can offer.
These more bespoke staircases are not available to order online, visit our Stairplan.co.uk website for more on these staircases.
Stairplan

Stairplan

New Hortonwood Factory in Telford
Pine Openplan Staircases

Pine Openplan Staircases

Pine Openplan Staircases with a Traditional Riser Downstand to ensure the 100mm shphere rule is adhered to for Building Regulations.

Click here for more on this staircase
Pine Open Plan Staircases

Pine Open Plan Staircases

Call us on 01952 608853 for a quotation

Straight Flights
Winder Staircases
Double Winder Stair Layouts
Quarter Landing Staircases Layouts

Unlimited designs available.
