Chrome Handrail Fittings

Fusion Chrome Bottom Connector MMBCS

Fusion Chrome Bottom Connector MMBCS

Ref: MMBCS


This bottom connector sits on top of the newel post at the bottom of the stairs and connects to the handrail travelling up the stairs.
Works between the angles of 38º - 45º

The connector is able to to be dismantled for installation and come with self tapping screws

Price: £34.50 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

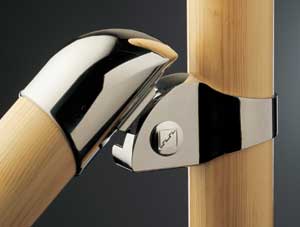

Fusion Chrome Top Connector MMTCS

Fusion Chrome Top Connector MMTCS

Ref: MMTCS


The top connector is attached to the Fusion newel post at the top of a flight of stairs and allows the handrail to travel down the stairs.

Works between the angles of 38º - 45º

Comes with Self Tapping Screws

Price: £38.87 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

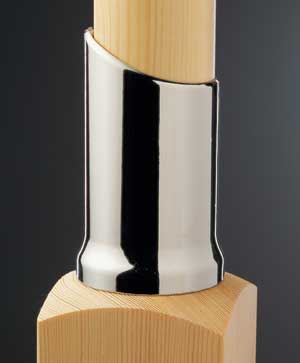

Fusion Chrome Newel Base Connector MMNCS

Fusion Chrome Newel Base Connector MMNCS

Ref: MMNCS


The Newel Base connector will sit on top of a 82mm or 90mm newel base. The newel post will then sit into the connector.

Come complete with self tapping screws

Dimensions: Diameter 66mm x 112mm


Price: £20.74 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

Fusion Chrome End Cap MMECS

Fusion Chrome End Cap MMECS

Ref: MMECS


The end cap is designed to finish off the tip of the 54mm newel post at the top of a flight of stairs where there is no landing.

This can also be used as an endcap on a handrail

Dimenions: 59mm Diameter x 30mm

Price: £16.25 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

Fusion Chrome Wall Connector MMWCS

Fusion Chrome Wall Connector MMWCS

Ref: MMWCS


The wall connector is used in place of a traditional half newel. This attached onto a wall, along with the landing handrail.

Come complete with self tapping screws

Price: £22.66 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

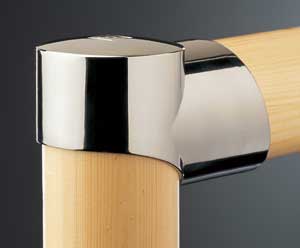

Fusion Chrome Landing Connector MMLCS

Fusion Chrome Landing Connector MMLCS

Ref: MMLCS


The landing connector sits on the newel post at the top of the stairs.

Comes complete with self tapping screws

Price: £21.55 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

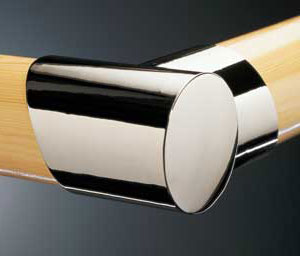

Fusion Chrome Horizontal Turn Left hand Connector MMHTLS

Fusion Chrome Horizontal Turn Left hand Connector MMHTLS

Ref: MMHTLS


This fittings allows for a left hand return at the top of the stairs onto the landing. This fixing allows for the landing handrail to be connected together a right angle.

Comes complete with self tapping screws

Price: £17.16 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

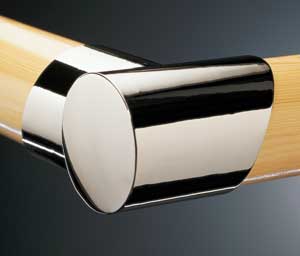

Fusion Chrome Horizontal Turn Right hand Connector MMHTRS

Fusion Chrome Horizontal Turn Right hand Connector MMHTRS

Ref: MMHTRS


This fittings allows for a right hand return at the top of the stairs onto the landing. This fixing allows for landing handrails to be connected at a right angle.

Comes complete with self tapping screws

Price: £22.20 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

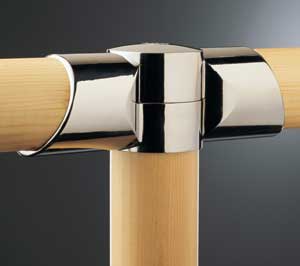

Fusion Chrome Adjustable Landing Connector MMALS

Fusion Chrome Adjustable Landing Connector MMALS

Ref: MMALS


This adjustable connector sits on top of the newel post and is used to break up a long landing run or on the corner of a L shaped landing.

Adjustable to be used at almost any angle

Comes complete with self tapping screws

Price: £39.88 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

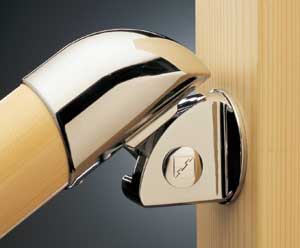

Fusion Chrome Intermediate Connector MMICS

Fusion Chrome Intermediate Connector MMICS

Ref: MMICS


This intermediate connector is used on a flat surface and allows the handrail to travel down a flight of stairs.
Works between angles of 38º - 45º

This is often used when an intermediate newel is being used.

Comes complete with self tapping screws

Price: £34.20 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

Fusion Chrome Storey Newel Connector MMSNS

Fusion Chrome Storey Newel Connector MMSNS

Ref: MMSNS


This connector can used on a flight of stairs or on a landing. It fastens to a flat surface for a handrail to run up a the angle on a flight of stairs or along a flat landing.

Used to connect the handrail to a square newel section.

Dimenisons: Diameter 59mm x 30mm

Price: £29.54 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

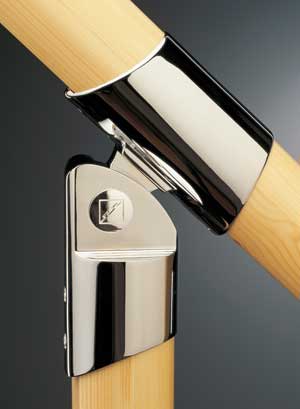

Fusion Chrome Intermediate Newel Connector MMINCS

Fusion Chrome Intermediate Newel Connector MMINCS

Ref: MMINCS


This fixing is used on a mid newel to break up a run on a flight of stairs.

For use on Cut String Staircases and staircases with a longer run than 2400mm. The handrail can be split in 2 or run as one continous length.

Suitable for a stair with a pitch between 38º - 45º.

Comes complete with self tapping screws

Price: £40.98 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

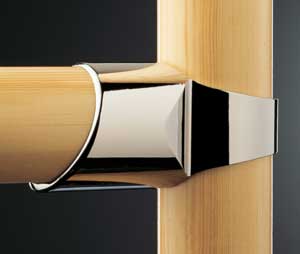

Fusion Chrome Half Landing Connector MMHLS

Fusion Chrome Half Landing Connector MMHLS

Ref: MMHLS


This is used to connect handrail on a half landing.

Dimensions: Diameter 59mm x 122mm

Comes complete with self tapping screws

Price: £17.59 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

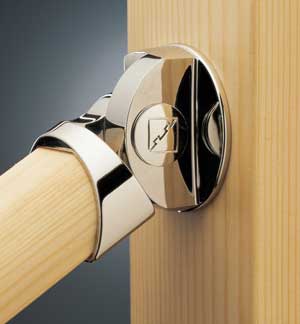

Fusion Chrome Suspended Baserail Connector MMSBCS

Fusion Chrome Suspended Baserail Connector MMSBCS

Ref: MMSBCS


This connector attaches to the newel base and allows the Fusion base rail to flow over the top of a stair tread.

For use on Cut String Staircases, suitable for pitches of 38º to 45º

Comes complete with self tapping screws

Price: £18.76 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

Fusion Chrome Wall Handrail Bracket MMWMHS

Fusion Chrome Wall Handrail Bracket MMWMHS

Ref: MMWMHS


This bracket attaches a handrail to a wall.

Dimensions 118mm x 71mm x 155mm

Distance of handrail centre to wall is 90mm

Wall countersunk fixings 3 x 5.2mm diameter

Handrail countersunk fixing 4 x 4.5mm diameter

Price: £26.92 (Excluding VAT at 20%)

CATALOG SUSPENDED

Fusion Chrome Wall Handrail Bracket MMWBS

Fusion Chrome Wall Handrail Bracket MMWBS

Ref: MMWBS


This bracket attaches a handrail to a wall.

Wall countersunk fixing holes 3 x 4.5mm diameter
Handrail countersunk fixing holes 2 x 3.75mm diameter

Supplied with fixing screws

This bracket fits the fusion handrail as well as other handrail profiles


Price: £12.97 (Excluding VAT at 20%)

CATALOG SUSPENDED

Fusion Chrome Wall Handrail End Cap MMWECS

Fusion Chrome Wall Handrail End Cap MMWECS

Ref: MMWECS


The handrail end cap is a decorative cap that will fit on the end of a 54mm mopstock handraill.

Accepts the Fusion handrail profile only that has a flat underside.

Dimesions 59mm x 84mm

Complete with 2 fixing screws


Price: £10.45 (Excluding VAT at 20%)

CATALOG SUSPENDED

Fusion mid Newel Base Pine with Chrome NB320PFS

Fusion mid Newel Base Pine with Chrome NB320PFS

Ref: NB320PFS


This fixing allows you to install an intermediate newel on a cut string staircase.
The newel is pre finished with a clear varnish and come with a steel bracket that can be screwed to a step.
The trim is provided to hide the steel plate.

Supplied with fixing connector, decorative edge and 82mm x 82mm x 320mm newel base.


Price: £15.41 (Excluding VAT at 20%)

OUT OF STOCK

CATALOG SUSPENDED

Fusion Chrome Square Newel Cap

Fusion Chrome Square Newel Cap

Ref: MMSQCS


Fusion Chrome Square Newel Cap for 90mm Newel Posts

Price: £24.45 (Excluding VAT at 20%)

CATALOG SUSPENDED
